Ticketless Parking Controller With 3m Straight Arm Barrier For LPR Parking System
The RPL-XY01-LED is an advanced ticketless parking controller designed to streamline access and enhance security in parking facilities. Utilizing a 3-meter straight arm barrier and License Plate Recognition (LPR) technology, this system offers a modern solution for managing vehicle entry and exit without the need for physical tickets.
Product Specifications:
| Products Model | RPL-XY01-LED |
| ALPR Camera | CPU | Specialized license plate recognition chip |
| Sensor | 1/3" CMOS Image Sensor |
| Minimum illumination | 0.01Lux |
| Lens | 6mm fixed focus lens |
| Built-in light | 4 high-power LED white lights |
| Plate recognition accuracy | ≥98% |
| Triggering mode | Video trigger, coil trigger |
| Image output | 1080P(1920x1080),960P(1280x960), 720P(1280x720),D1(704x576),CIF(352x288) |
| Picture output | 5 mega-pixel JPEG |
| Video compression format | H.264 High Profile , Main Profile, Baseline , MJPEG |
| Network interface | 10/100,RJ45 |
| IO | 2 input & 2 output 3.5mm connecting terminals |
| Serial interface | 2 x RS485 |
| Audio Interface | 1 input & 1 output |
| SD Card | Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G |
| Power Supply | AC220V |
| Power Consumption | ≤7.5W |
| Working Temperature | -25℃~+70℃ |
| Main Component Parameters |
| LED Screen X04 Control Board | LED Screen Size | 260mm*260mm ( P4 LED 4 lines ) |
| LED Screen Resolution | LED module: 64*32 Advertisement Screen: Video Size 260mm*440mm ( Display size 230mm*410mm ) |
| Voice | Temporary vehicles can be broadcast, the monthly car is welcome, and the journey is safe and other vehicle voice reminders |
| Display | Support a variety of LED modules |
| Chip | ARM Cortex-M Series RISC core core chip |
| Screen Control | Supports standard horizontal and vertical screens, which can be switched by pressing the button; |
| Display Control | Supports three-color, two-color, and multiple color displays (hardware and software vary); |
| ALPR Camera Type | Connect with mainstream cameras such as A/B/C and Dahua; 4. Provide SDK development kit and free technical guidance; 5. Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; 6. Supports two-line and four-line display screens, equipped with traffic light interface; 7. Built-in voice broadcast system, the real voice is loud and clear; 8. Universal voice can be expanded to meet personalized needs. |
| Secondary Development | Provide SDK development kit and free technical guidance; 5. Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; 6. Supports two-line and four-line display screens, equipped with traffic light interface; 7. Built-in voice broadcast system, the real voice is loud and clear; 8. Universal voice can be expanded to meet personalized needs. |
| Full Integrated Solution | Provide a full range of docking solutions to support the Internet of Things, car wash systems, license plate recognition systems, and platform payment system debugging and matching. The connection supports offline use, encryption, and personalized development; |
| Screen Type | Supports two-line and four-line display screens, equipped with traffic light interface; |
| Voice System | Built-in voice broadcast system, the real voice is loud and clear; |
| Customization | Universal voice can be expanded to meet personalized needs. |
| Power interface | 12V mode, input 5A, output can be equipped with 2 modules, current >3.5A, built-in anti-reverse connection function |
| General Parameters | Protection class | IP42,Dustproof and Waterproof Function |
| Power Supply | Meanwell LPS-150-12(12V 12.5A),159*97*30mm (L*W*H) |
| Working Temperature | ‘-10℃～60℃(Optional thermostat) |
| Working humidity | 5%-85% |
| Power consumption | 150W Max, AC 220V±10％/50Hz |
| Device size | 430*290*1460mm(Width*Thickness*Height) |
| Net Weight | ≈37kgs(43.5*32.5*151cm, Carton Package |
| Gross Weight | ≈38kgs(45*35*157cm, Wooden Package) |
| DC Servo High Speed Barrier Gate |
| Supply voltage | AC220V±10%50Hz |
| Card reading signal: | switch value |
| Motor: | DC servo motor 150W |
| Input voltage: | 24V |
| Rated/peak current: | 10A/30A |
| Human-machine interface: | 4-digit LED, 4-digit button |
| Hardware protection: | over-current protection,
over-voltage protection,
short-circuit protection |
| Input signal: | gate opening, closing, stop,
ground sensing, anti-smashing |
| Output signal: | open position, closed position dry contact |
| Product size: | 340*308*954mm |
Technology Is The Core Of Our Hardware And Software,
And The Appearance Is Designed Independently
The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, gold and black brings you a more shocking vision.
RPL-XY01-LED is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, 160mm*320mm (P4.75 LED 2 lines) LED display, single LED display in the One. Module 64*32 dot matrix resolution. The AI license plate recognition algorithm independently developed by Realpark has increased the recognition accuracy to 99%. This product can be used in conjunction with video intercom terminals and management platforms, and supports multiple extended functions, such as front-end voice interaction, advertisement push, etc. Most importantly, it can support unattended parking applications, online payment and remote management and maintenance. RPL-XY01 can be used in large commercial buildings, shopping malls, government agencies, residential areas, industrial parks, etc.
Perfectly Compatible with Complex Scenes
Dual license plate signal capture via video stream and loop detector/radar for 99% license plate capture rate. The product supports dual-channel camera collaborative recognition to meet the complex application scenarios of mixed driving of cars and motorcycles. At the same time, indoor and outdoor, winter rainy season is also completely no problem.
Powerful Hardware Platform, More Robust Performance
Built-in self-developed unique license plate recognition algorithm and high-end technology image processing unit from different countries around the world. At the same time, powerful application processing capabilities and deep learning capabilities for license plate recognition make the technology more powerful, and the product uses an industrial-grade quad-core high-end hardware platform .
It is perfectly compatible with different installation environments and usage scenarios.

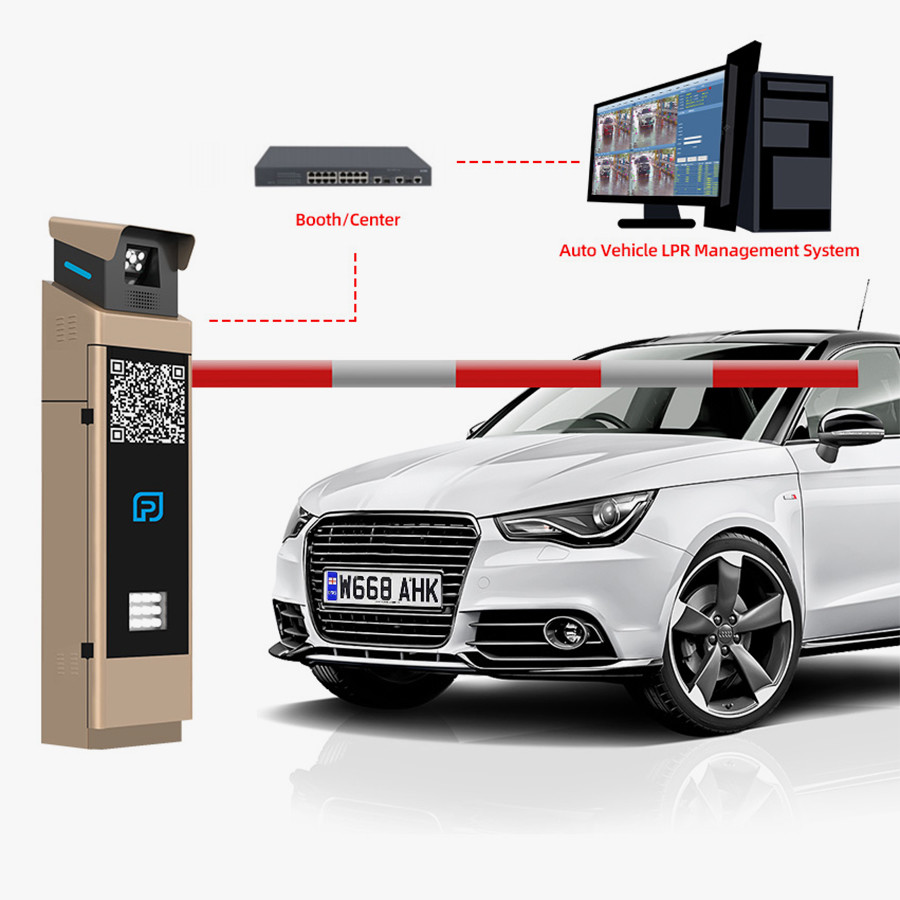

This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.
It is perfectly compatible with different installation environments and usage scenarios.
This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.
FAQs for Ticketless Parking Controller: RPL-XY01-LED
-
What is the RPL-XY01-LED?
- The RPL-XY01-LED is a ticketless parking controller that utilizes License Plate Recognition (LPR) technology and features a 3-meter straight arm barrier for efficient vehicle access management.
-
How does the License Plate Recognition (LPR) work?
- The LPR system captures images of vehicle license plates as they approach the barrier, automatically identifying and logging them for entry and exit without physical tickets.
-
Is the RPL-XY01-LED suitable for outdoor use?
- Yes, the RPL-XY01-LED is designed to be weather-resistant, making it suitable for both indoor and outdoor installations.
-
How does the ticketless operation benefit users?
- Ticketless operation reduces wait times and streamlines the parking process, allowing for quick and hassle-free entry and exit.
-
Can the system be monitored remotely?
- Yes, operators can monitor and control the RPL-XY01-LED remotely, receiving real-time alerts for any issues or unauthorized access attempts.
-
What kind of maintenance does the system require?
- The RPL-XY01-LED requires minimal maintenance, primarily periodic checks of the camera and barrier mechanisms to ensure optimal performance.
-
Is the LED display customizable?
- Yes, the LED display can be configured to show various messages, including status updates and instructions for drivers.
-
Can the system handle high traffic volumes?
- Absolutely. The RPL-XY01-LED is designed to efficiently manage high traffic volumes, ensuring smooth operations even during peak times.
-
What security features are included?
- The system includes advanced security protocols to prevent unauthorized access and ensure that only registered vehicles can enter the parking facility.
-
How can I integrate the RPL-XY01-LED with existing parking management systems?
- The RPL-XY01-LED is designed for compatibility with various parking management systems, and integration can be facilitated through API connections or custom configurations based on your specific requirements.
